Overview

The convertible top on the Porsche 911 Carrera (996: 1999–2005, 997: 2005–2012) is hydraulically actuated. Rather than using the traditional cable-and-pulley approach, the car uses a set of pressurized cylinders to both open and close the top. Over time, the system can leak or fail, causing the convertible top to get stuck in either the up or down position.

Applicable Models: - Porsche 996 Carrera Convertible (1999–05) - Porsche 996 Carrera 4 (2002–04) - Porsche 996 Carrera 4 Convertible (1999–01) - Porsche 996 Carrera 4S Convertible (2004–05) - Porsche 997 Carrera Convertible (2005–12) - Porsche 997 Carrera 4 Convertible (2006–12) - Porsche 997 Carrera 4S Convertible (2006–12) - Porsche 997 Carrera S Convertible (2005–12)

Project Time: ~3 hours | Parts Required: New motors, pumps | Complementary Modification: SmartTOP Override

System Operation

Hydraulic Actuators

The basic operation of the system boils down to the use of two hydraulic actuators, mounted inside each rear interior panel. Each actuator is fed by the main system pump. The actuators are mechanically linked to the convertible top frame — when the actuators expand, the top raises.

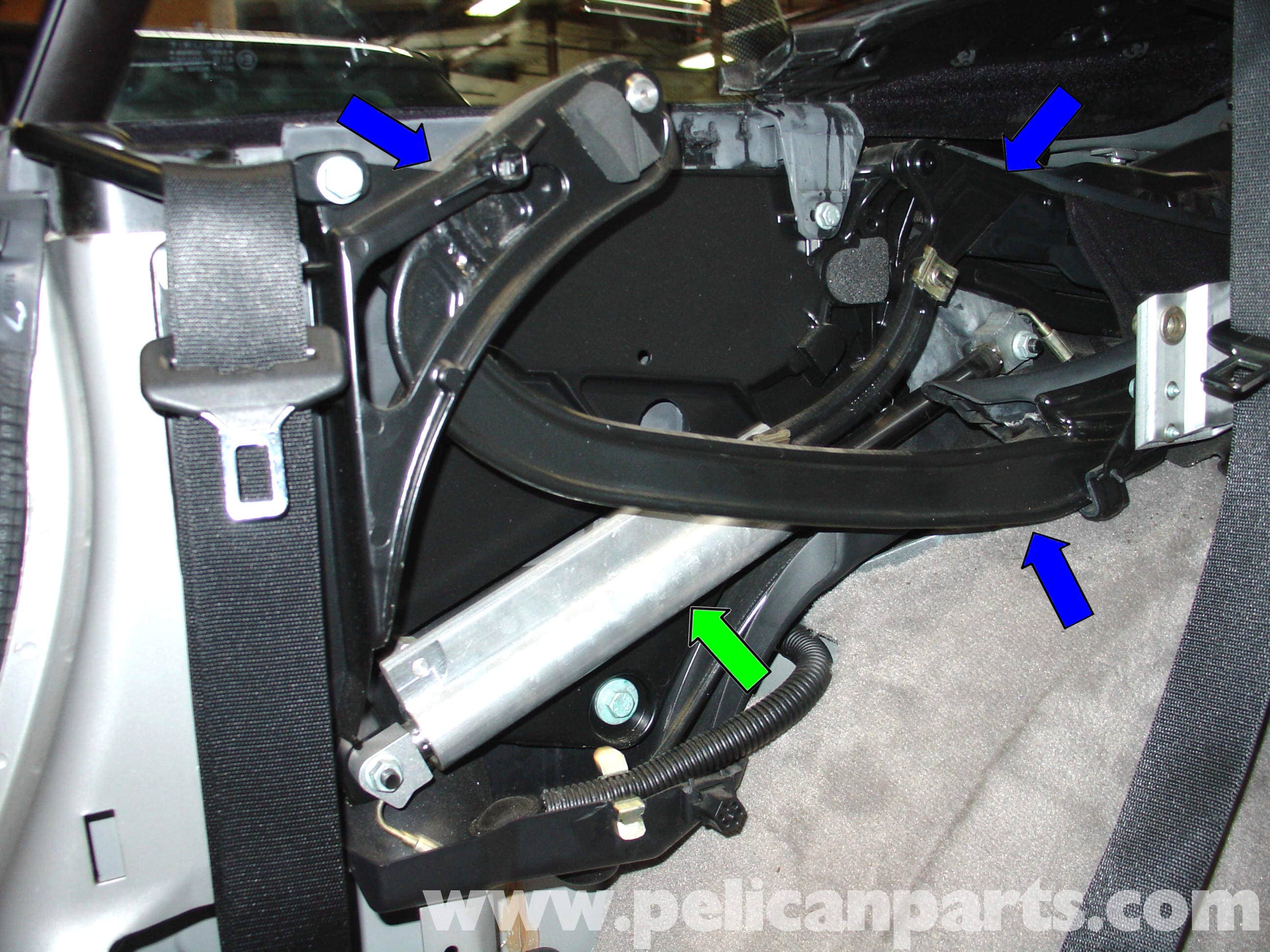

Hydraulic Actuator Figure 6: One of two hydraulic actuators used to raise and lower the top, located behind each rear side panel.

Fluid System

If the system is low on fluid, it can operate loudly and cause the top to stop working. Sometimes simply adding fluid to the system can get it working again. The fluid in the reservoir can also go bad (especially if there are leaks or contaminants), causing the system to work harder.

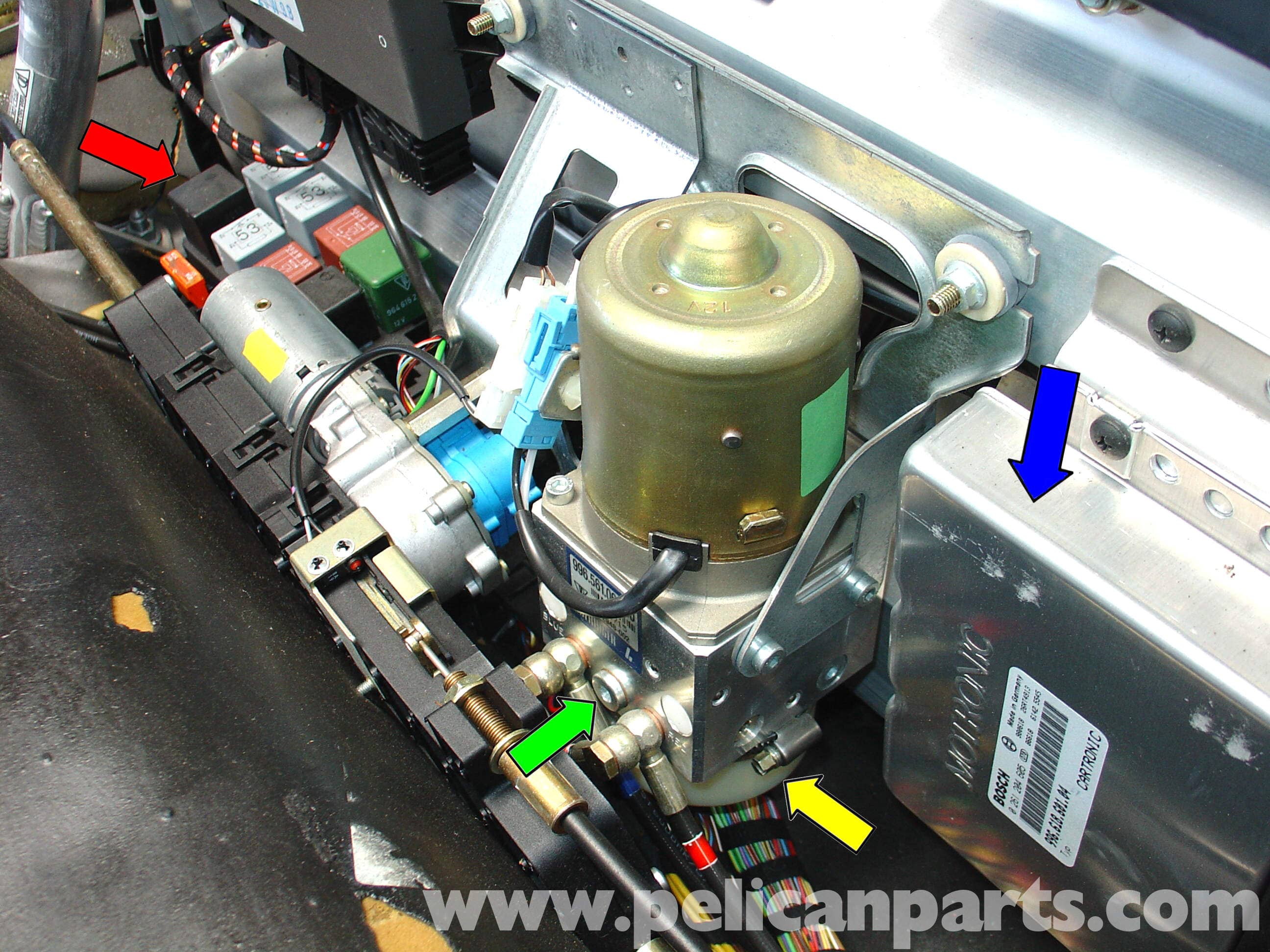

Hydraulic Pump Figure 5: Hydraulic pump powering the entire mechanism. Fluid reservoir is below the pump. Add hydraulic fluid until the level reaches the high mark below the fill plug.

Service Position Procedure

Begin by moving the convertible top to the service position — where the front edge of the top is about 12–15 inches from the top edge of the windshield. This lets you keep the body flap open and gain access to the pump.

Once in service position: - Locate the guide cable connections under the rear window flap, attached with two ball joints (these keep the rear window flap down during opening/closing) - Pop both cables off the ball joints and fold the rear window flap up over the top - Pry out the four black plastic tabs holding the upper carpeting to the roll bar bulkhead - Stretch the carpeting over the black plastic blocks on either side and lift it out of the car

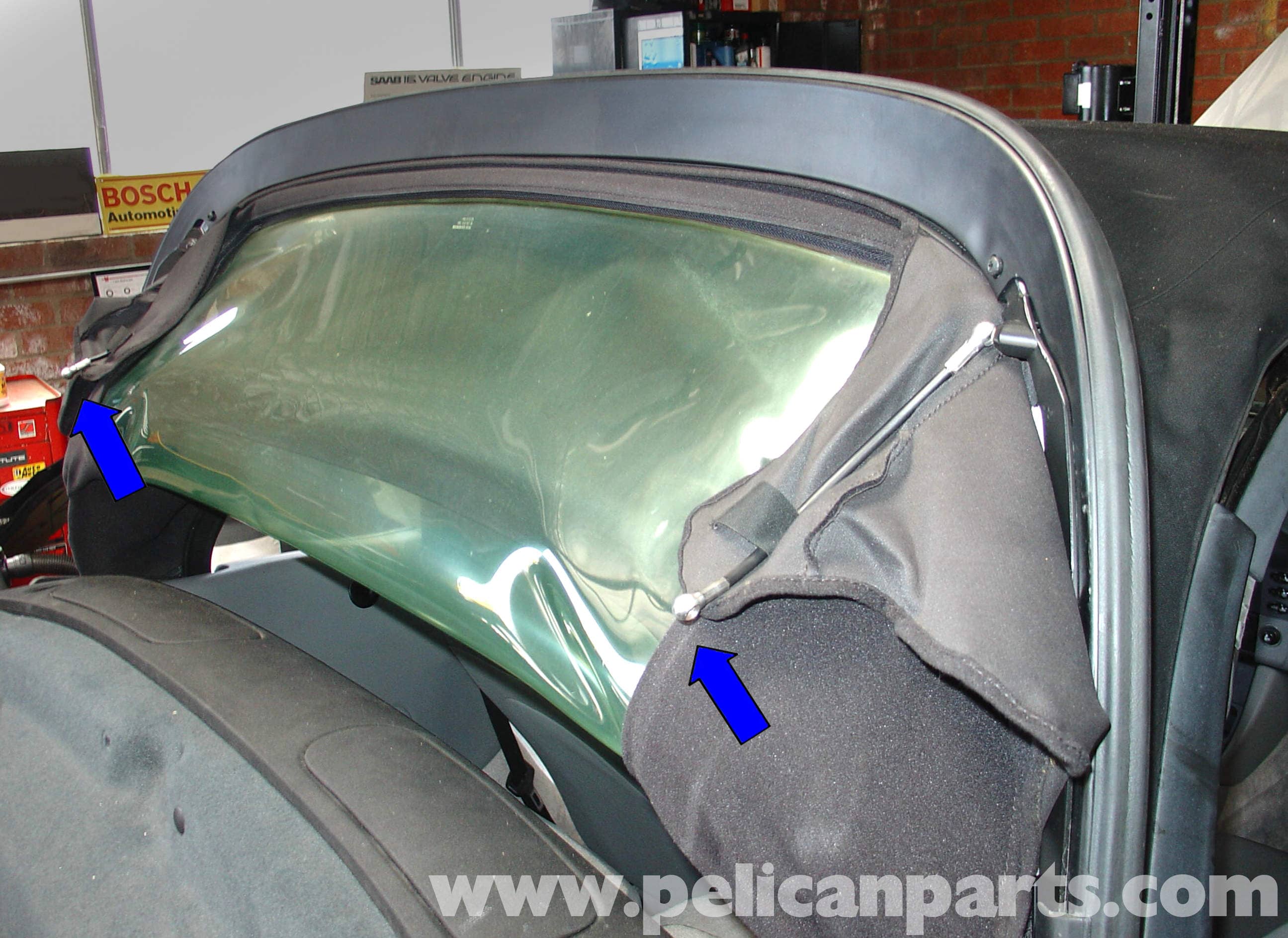

Service Position Figure 2: After disconnecting guide cables, fold rear window flap up to expose the hydraulic pump area.

Front Latch Mechanism

The front latch at the windshield can also fail over time. This motor assembly extends a hook that latches the top against the windshield frame.

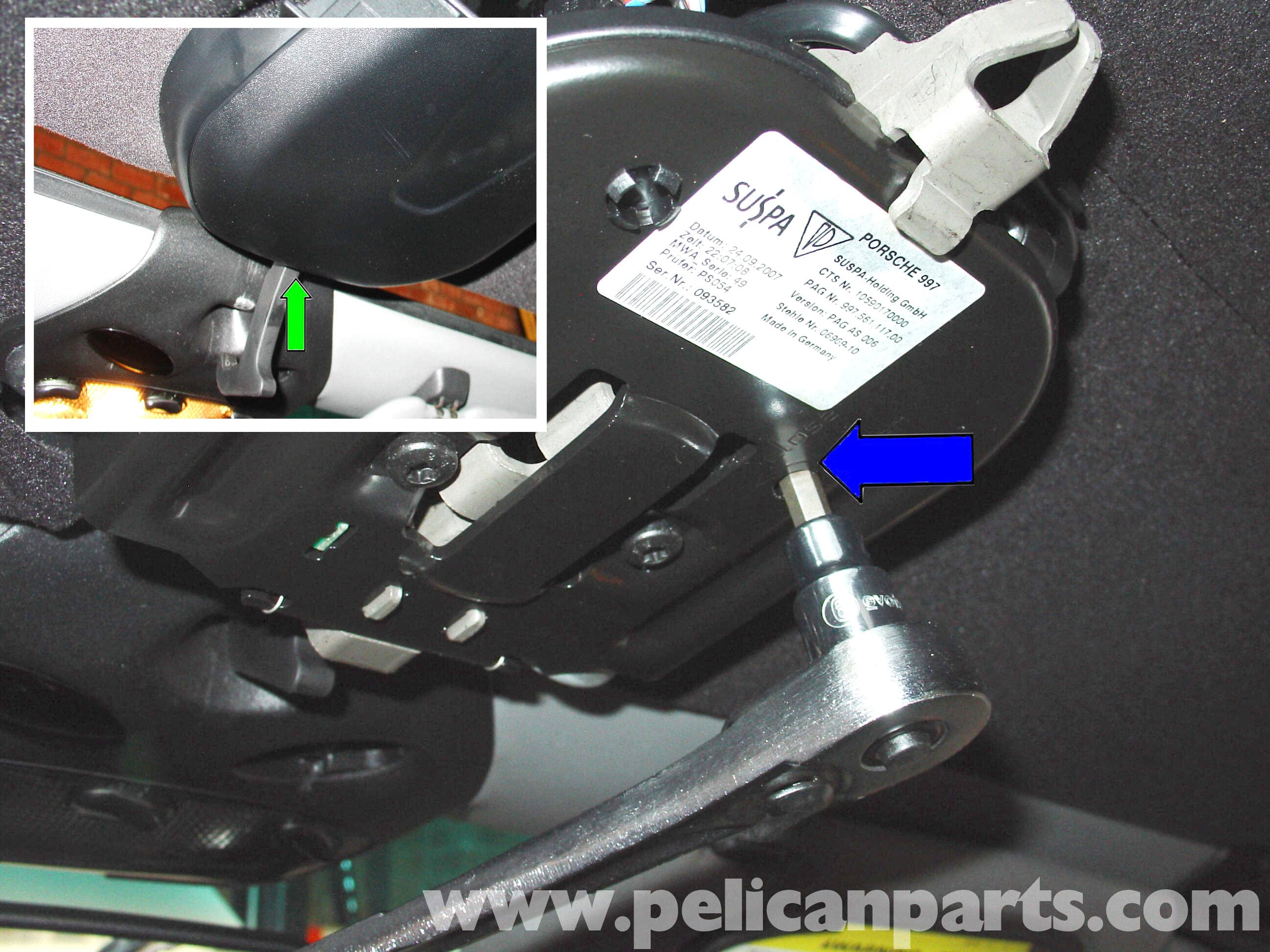

Front Latch Assembly Figure 7: Front latch assembly with manual override port (green arrow). Turning the 6mm screw counter-clockwise closes the latch; clockwise opens it.

Manual Override

If the front-latch motor fails, you can still manually operate the latch: 1. Pry off the plastic cover at the front of the latch mechanism 2. Insert a 6mm hex key into the over-ride actuator 3. Turn counter-clockwise to close the latch (same tool used for emergency open/close of entire top) 4. Turn clockwise to open the latch

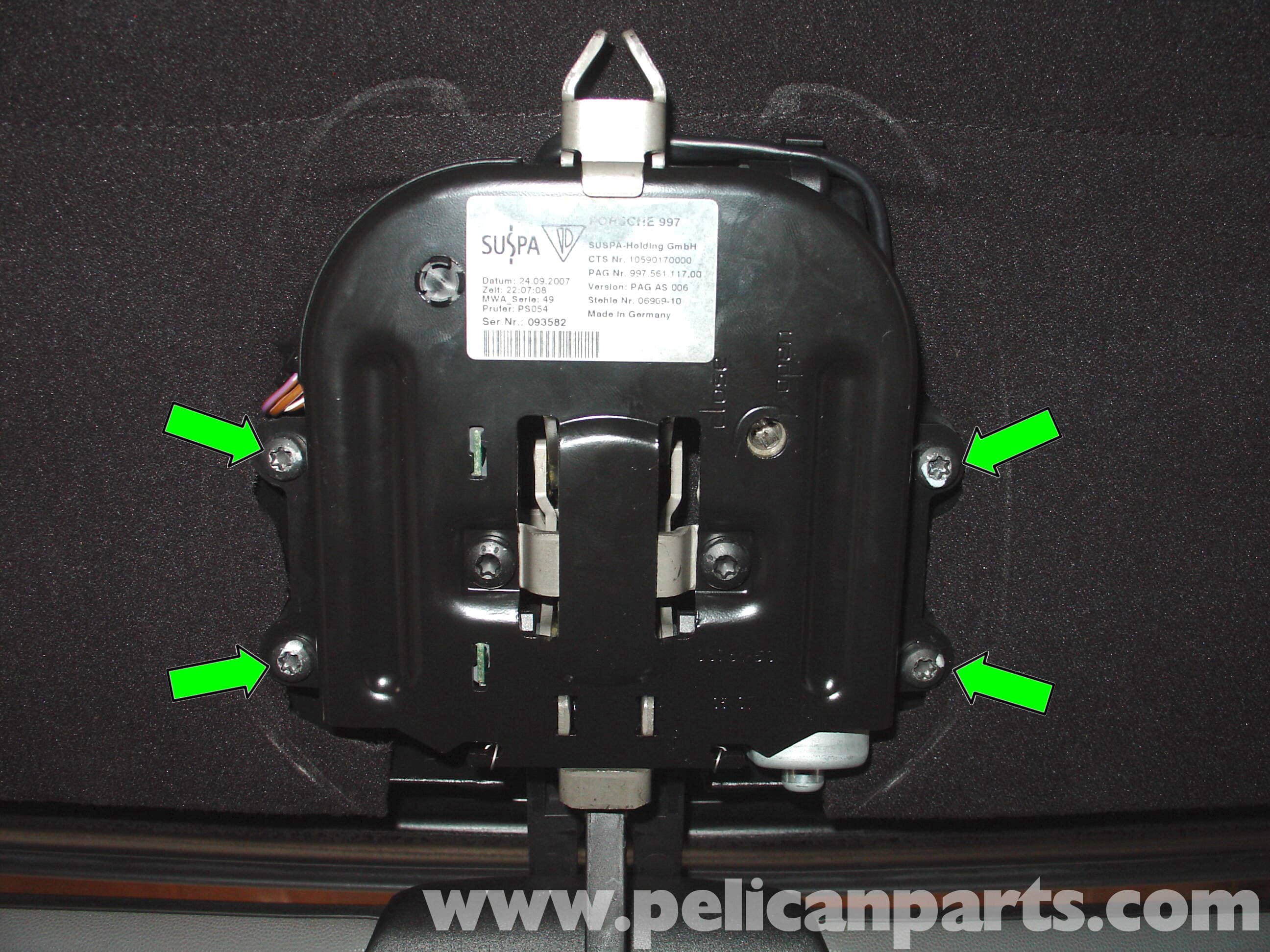

Latch Removal Figure 8: Remove four Torx bolts to detach the latching mechanism from the front of the convertible top.

Emergency Manual Operation

If the convertible top cannot be opened using the switch, you can operate it manually. This procedure is a last resort — you may lose the reference points and need a Porsche factory computer (e.g., PS2) to reset them.

Step 1: Remove Rear Panel

  • Remove the rear panel behind the seats (held by two Phillips-head screws)
  • Fold rear seats down; panel is accessible through that area

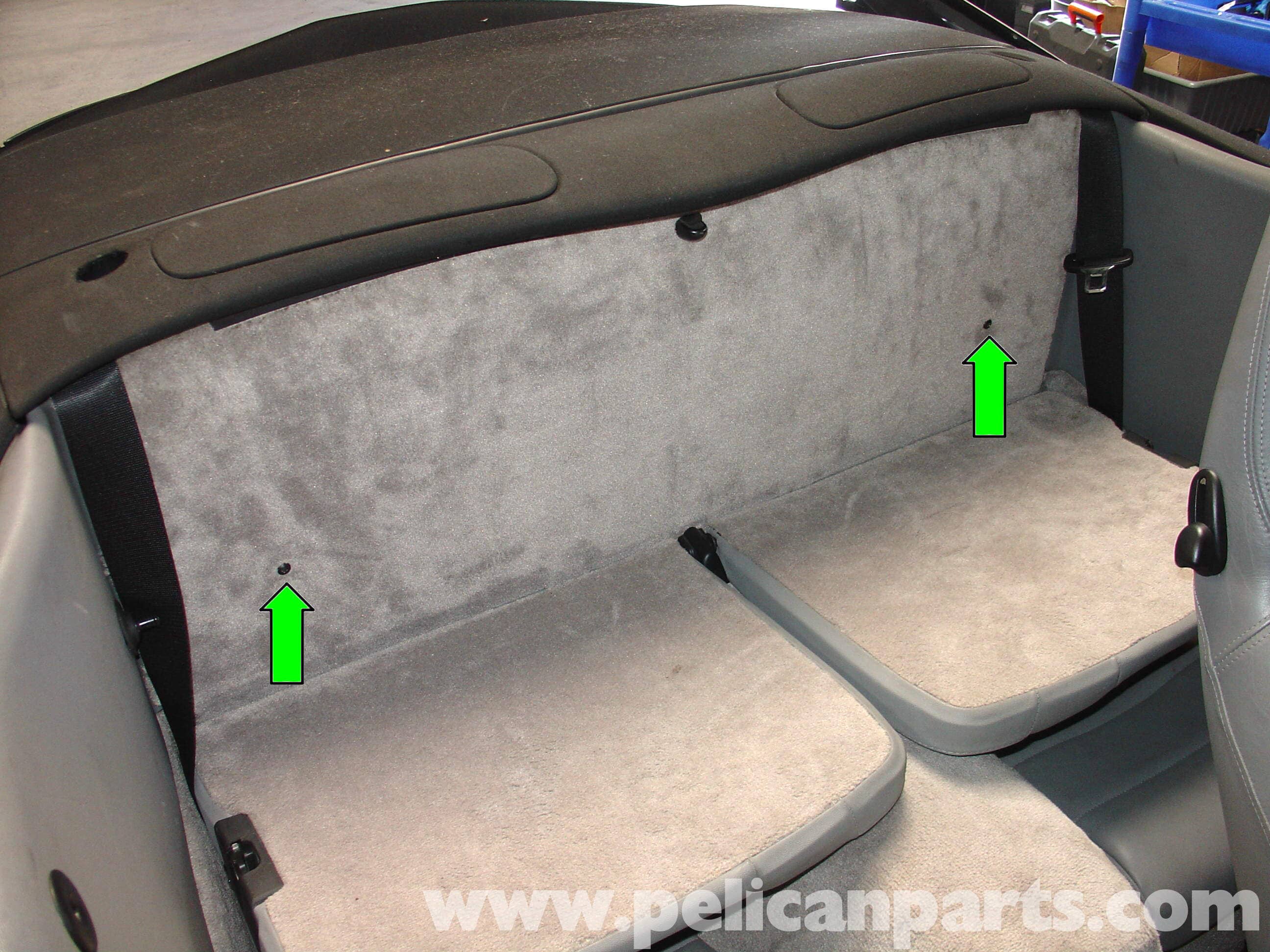

Behind Rear Seats Figure 10: Access panel behind upper rear seats to reach manual over-ride for the top.

Step 2: Open Body Flap Mechanism

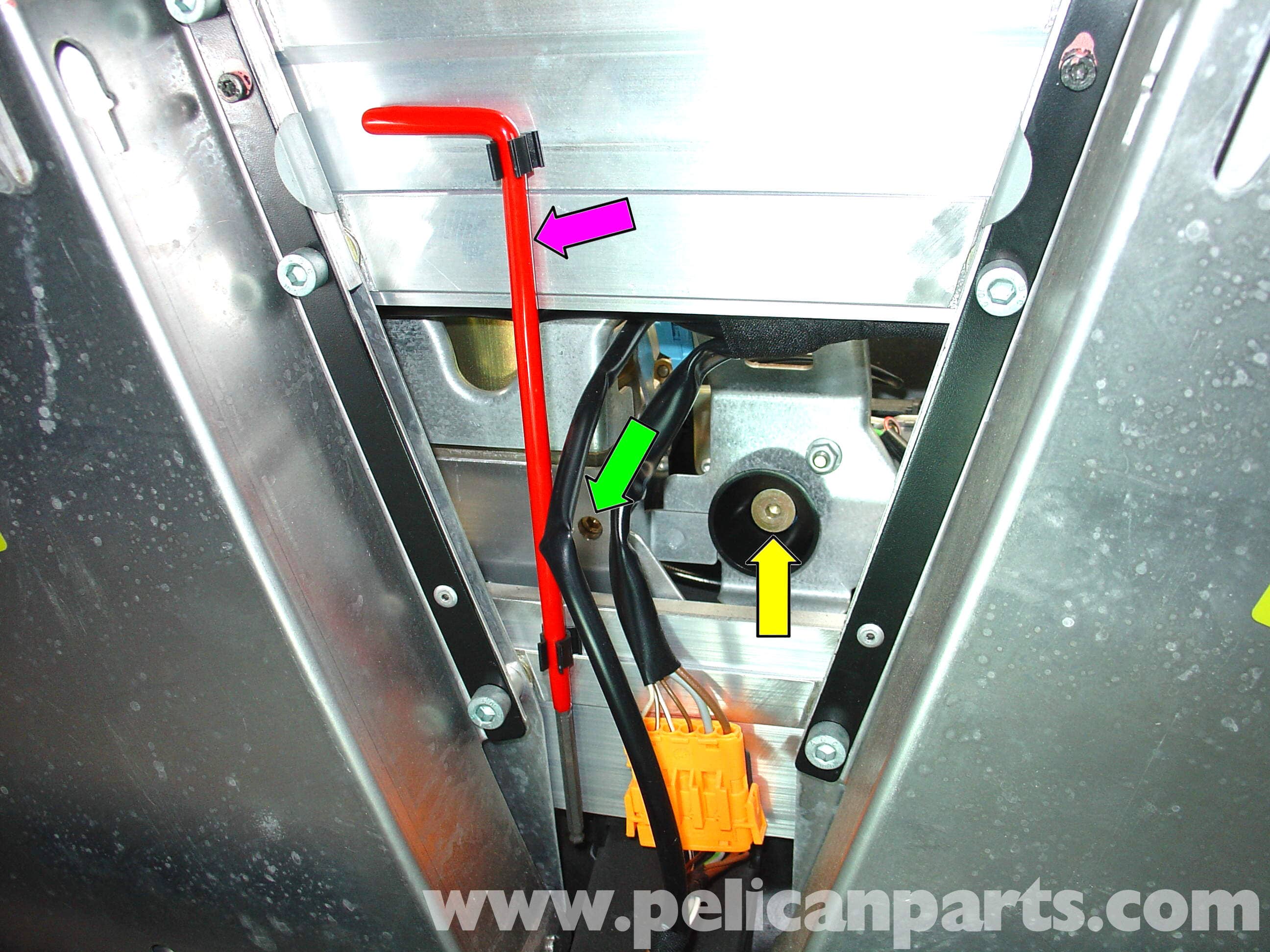

With the panel removed, you can see: - The bleed valve used to actuate the convertible top frame (green arrow) - Manual motor override for the rear body flap (yellow arrow) - Actuation tool stored on the bulkhead (purple arrow)

Manual Override Panel Figure 11: Access panel showing bleed valve, manual override, and actuation tool storage.

Step 3: Operate Side Flaps

Use the tool to open the side flaps — rotate counter-clockwise until fully open.

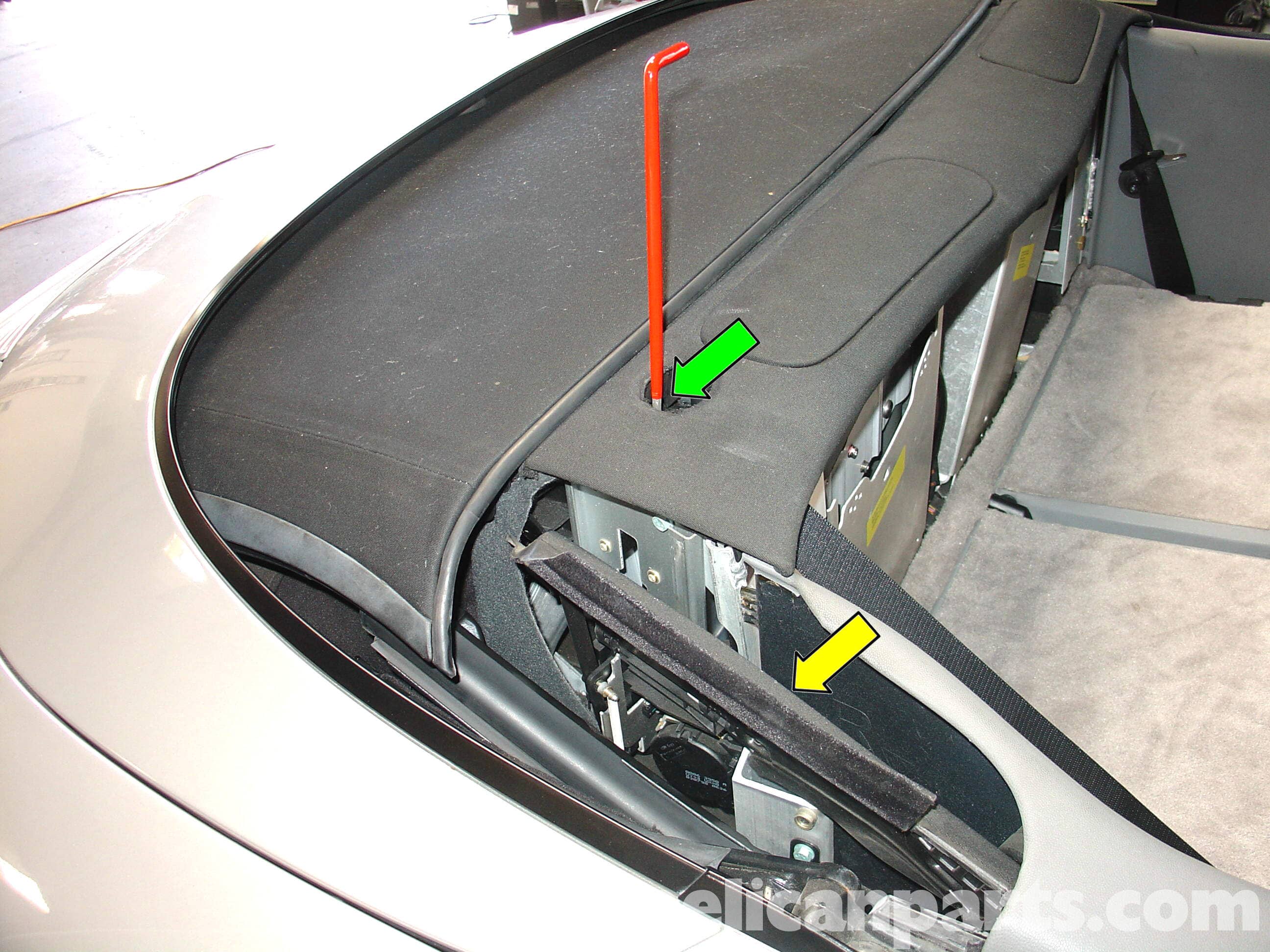

Side Flap Operation Figure 12: Use tool to manually open side flaps on the convertible top.

Step 4: Open Body Flap & Pressure Relief

Insert the tool into the right port and turn counter-clockwise until the body flap is fully extended. The left port is a pressure relief valve — turn it counter-clockwise one revolution to bleed off system pressure.

Step 5: Manually Move the Top

  • If the top is already closed, simply push it back into the car
  • If the top is already open, grab it in the middle and pull it up and over until nearly closed
  • Use the front latch assembly over-ride port to close the top fully

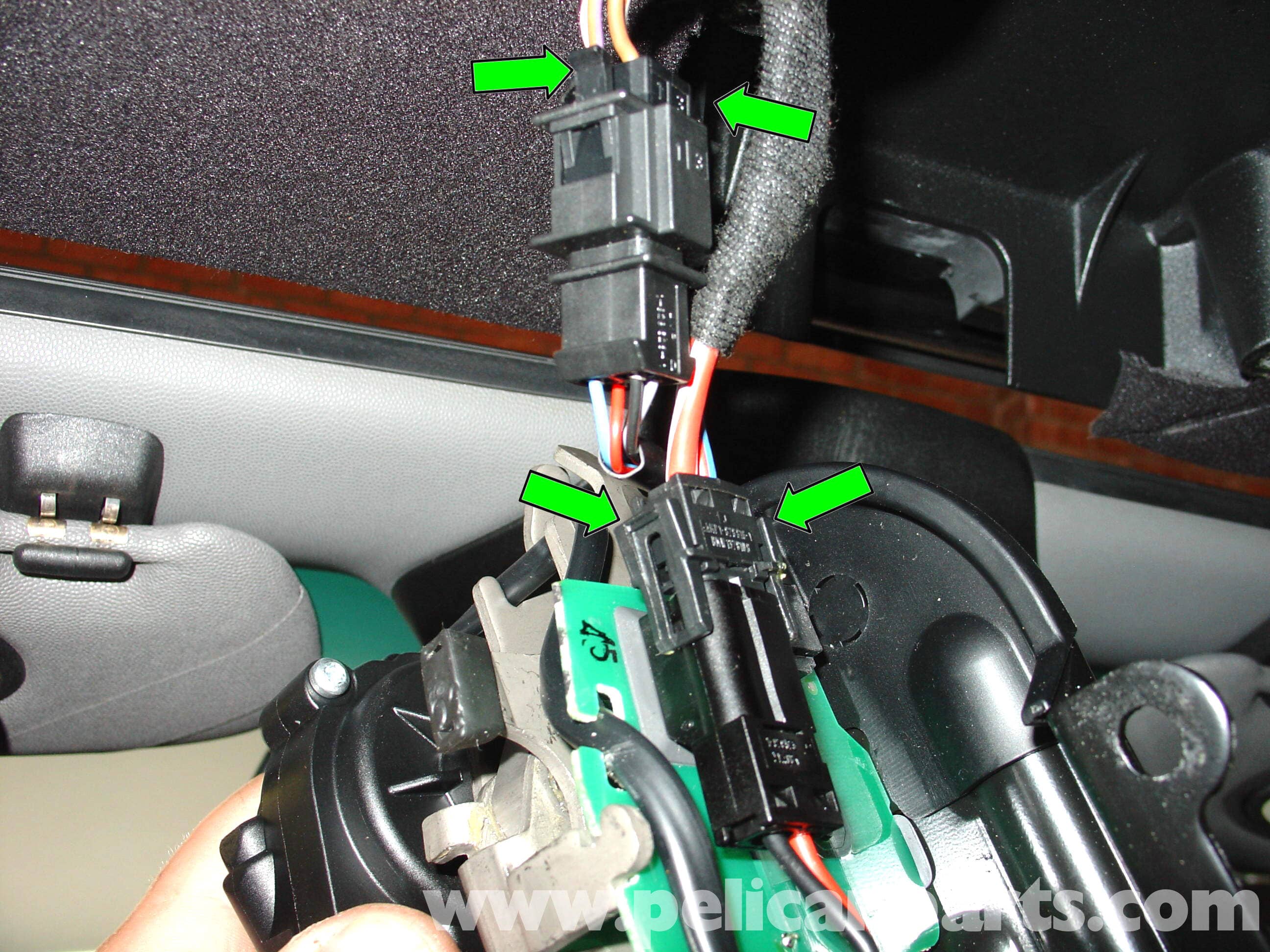

Front Latch Detail Figure 9: Electrical connectors on the front latch assembly — squeeze black tabs to disconnect.

Hydraulic Fluid Service

To add fluid to the system: 1. Remove the fill port plug (hex plug between hydraulic lines on pump) 2. Use a small syringe with plastic tubing to withdraw old fluid and add new fluid 3. Add hydraulic fluid until the level in the reservoir reaches the high mark

Hot Tip: Make sure the system has enough fluid inside! Low fluid is often the simplest cause of convertible top failure.

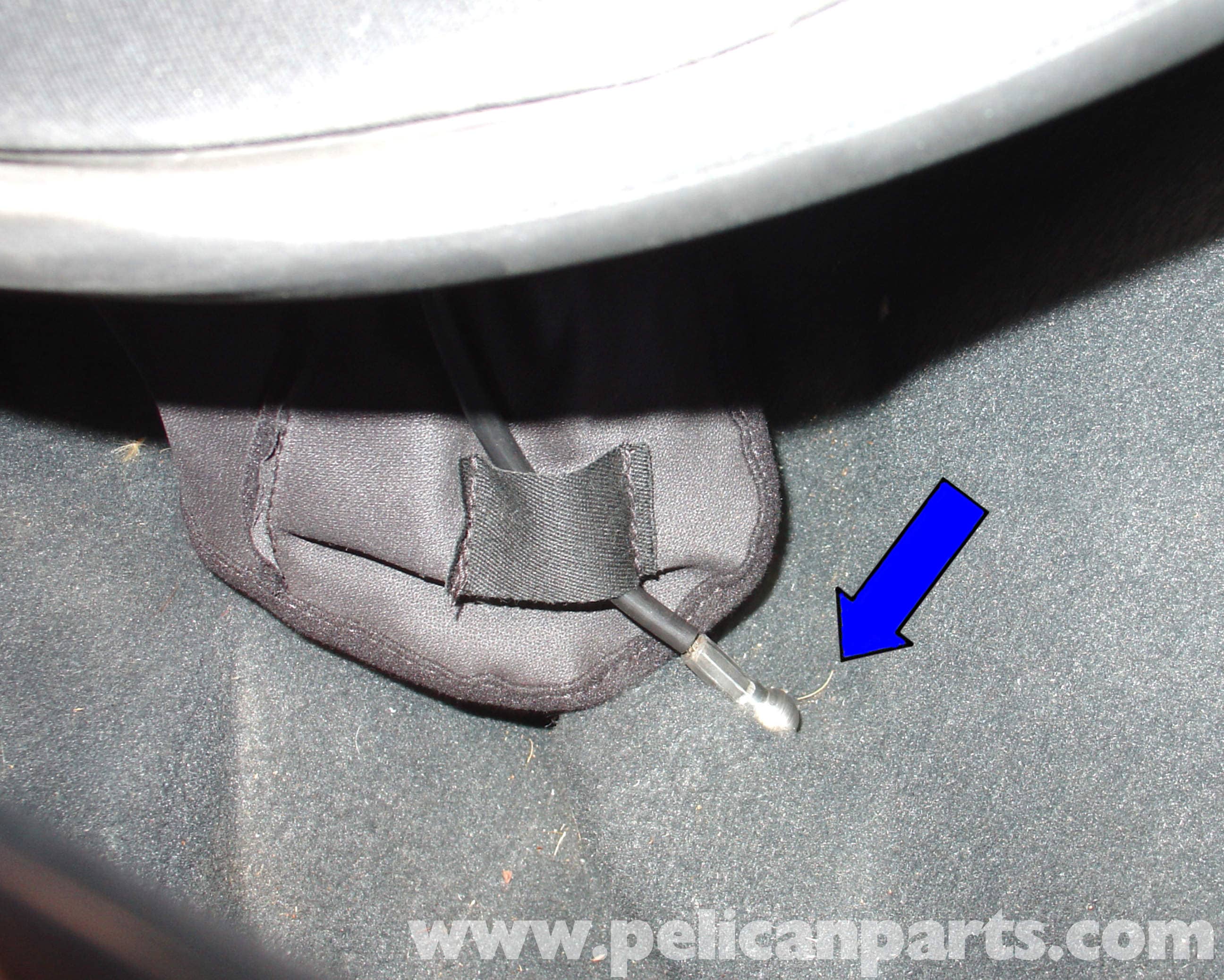

Hydraulic System Figure 1: With the top in service position and rear body flap open, access the hydraulic pump via disconnected guide cables.

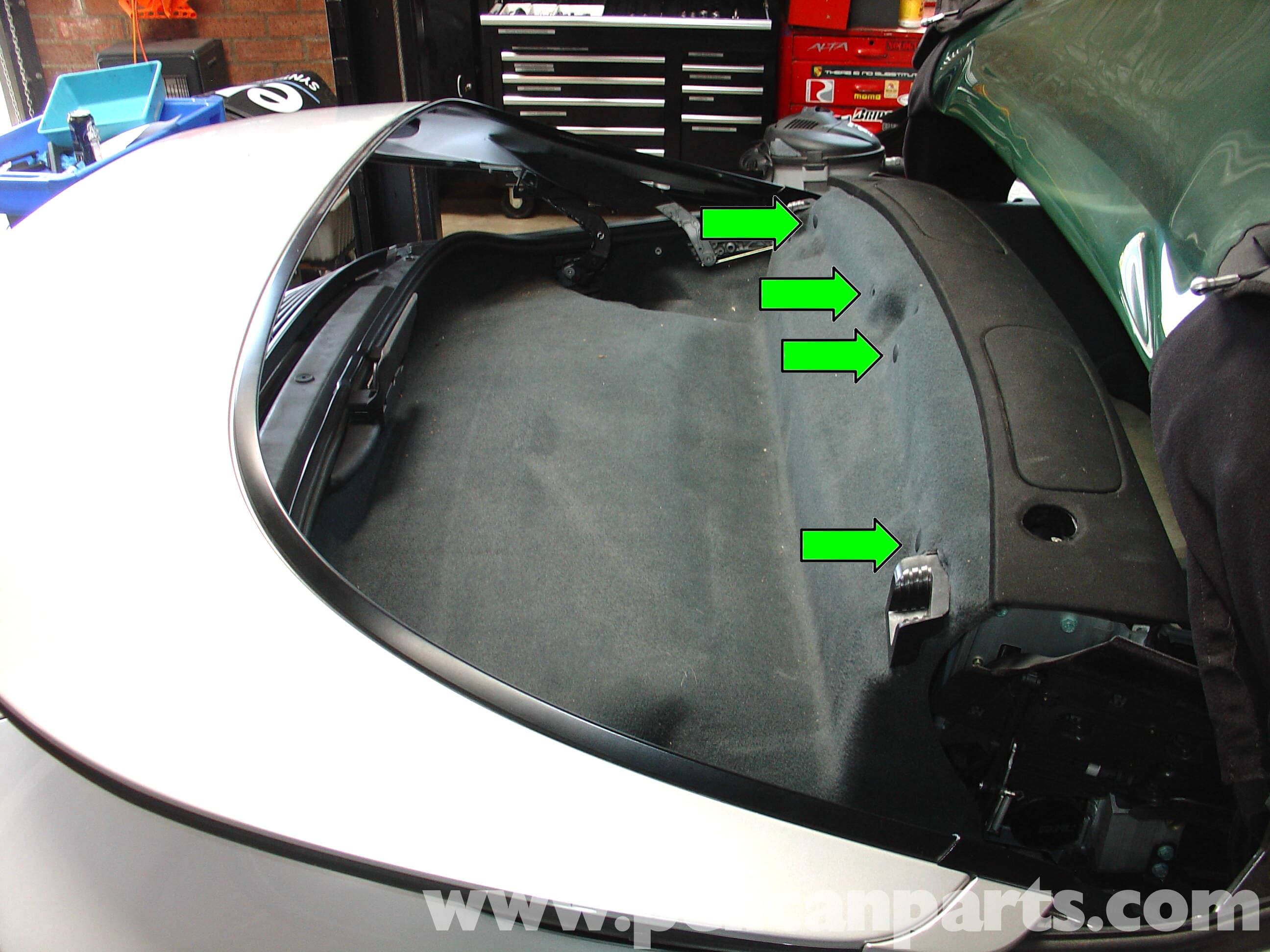

Carpet Removal Figure 3: Pry out four black plastic tabs holding carpeting to bulkhead.

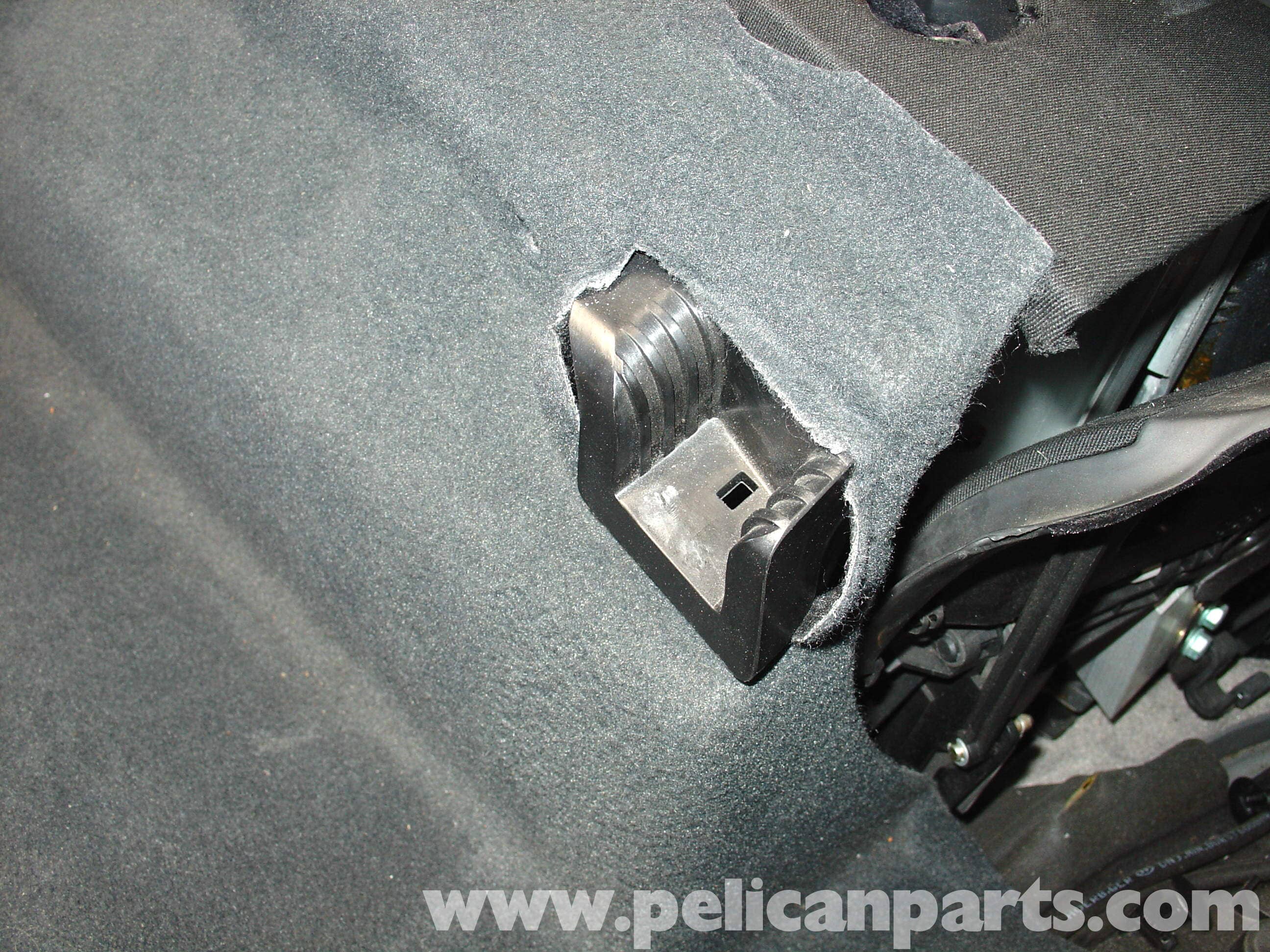

Carpet Removal Detail Figure 4: Stretch carpet over plastic blocks, then lift out of the car.

Key Components Summary

Component Location Common Failure Mode
Hydraulic pump Behind rear body flap Low/bad fluid
Hydraulic actuators (x2) Inside rear interior panels Leaks, mechanical wear
Front latch mechanism Center front of convertible top Motor failure, microswitch issues
Fluid reservoir Directly under hydraulic pump Contaminated fluid, low level
Pressure relief valve Left port on body flap assembly Valve won't hold pressure
